Floor Swing Door Operator
This floor swing door operator installs completely below floor level — no arm, no rail, no visible hardware above the surface. Handles gates up to 250 kg. Bluetooth and 4G built in. Obstacle rebound, waterproof housing, and interchangeable shaft heads for any market. Ships complete as a kit.
Overview
Open Bear's floor swing door operator installs completely below floor level — no arm, no rail, no visible hardware above the surface. Handles gates up to 250 kg and 1.2 m wide on a 24V DC motor. Bluetooth and 4G built in. Obstacle rebound, waterproof housing, and interchangeable shaft heads for any market. Ships complete as a kit — nothing to source separately.

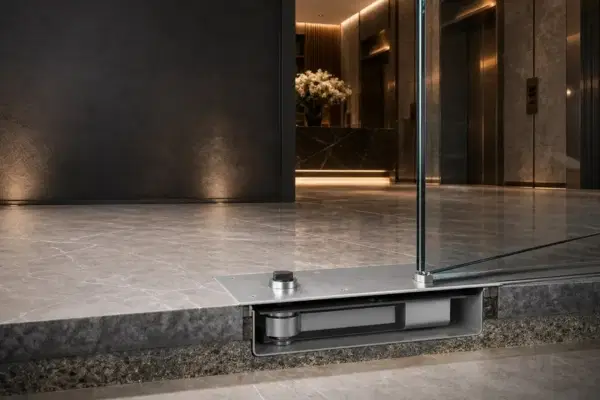

The Gate Opens. Nothing Else Shows.
Nothing shows once the job is done. The entire mechanism — motor, drive, and stainless steel shaft head — sits inside a recessed housing below the pivot point of the gate. No visible arm, rail, or motor from any angle after commissioning. A single unit opens one leaf to 90°. Fit two and they drive a double gate to 180° total — the cleanest installation finish in the Open Bear swing range.
No arm, rail, or bracket visible above surface
Single gate: 90° opening
Stainless steel shaft head
Bluetooth and 4G Built In. Open Your Gate from Anywhere.
Open your gate from your phone the day it is installed — Bluetooth and 4G are built directly into the unit, with no extra module to source or fit. Remote commissioning means your installer can adjust every parameter without crouching at the gate — all settings are reachable from a phone. Five access methods connect through the same controller from day one.
Bluetooth built in
Obstacle rebound - gate auto-reverses if blocked mid-swing
Remote commissioning — adjust parameters from phone

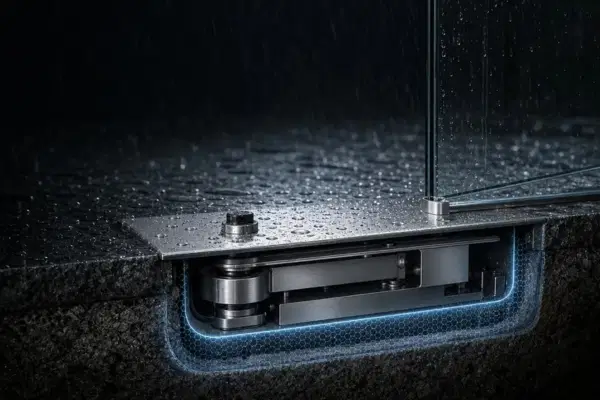

Waterproof. Burst Proof. Anti-Corrosion. Built for What's Under Your Floor.
A floor-mounted operator faces conditions no wall-mounted unit does — water ingress, ground pressure, and corrosion from below. Rain, dust, and soil contact won't reach the motor — the housing is waterproof, burst proof, and anti-corrosion rated. Anti-CO protection prevents carbon monoxide build-up in enclosed or basement installations. Integrated die casting seals the body completely, preventing oil leakage. Closing speed adjusts independently via the speed control screw — set once during installation, holds through every cycle after that.
Waterproof housing — water and dust resistant
Anti-corrosion (antiseptic)
±5 mm body position adjustment
56 Nm. Handles Gates Up to 250 kg. Safe to Touch at Any Point.
At 56 Nm, this floor swing door operator moves gates up to 250 kg and 1.2 m wide — the heaviest load you can run with a fully concealed below-floor install. The motor runs on 24V DC — well below the voltage where electric shock becomes a risk, safe to touch at any point in the gate's arc. Running noise stays at or below 60 dB. The operating range covers -25°C to 70°C without modification. Slow start and slow stop motion means the gate never slams at either end — smooth through every cycle.
56 Nm output torque — 250 kg max gate weight
48°/s angular speed — ±90° maximum opening arc
≤60 dB running noise — mute switch operation
Technical Specifications
What's in the Box
Every Open Bear floor swing door operator ships as a complete kit. Nothing needs to be sourced separately before installation day — open the box and the job can start.You May Also Need
